How does an ATS work with a Standby Diesel Generator Set?

As a supplier of Standby Diesel Generator Sets, I often get asked about how an Automatic Transfer Switch (ATS) works with these sets. It's an important topic, especially for those who rely on backup power during outages. So, let's dive into it and break down the process in a simple way.

What is an ATS?

First off, an Automatic Transfer Switch, or ATS for short, is a crucial component in a standby power system. Its main job is to detect when the main power supply fails and then transfer the electrical load from the utility grid to the standby diesel generator set. Once the main power is restored, the ATS switches the load back to the grid and shuts down the generator.

How the ATS Detects Power Outages

The ATS constantly monitors the voltage and frequency of the main power supply. It's like a vigilant guard, always on the lookout for any signs of trouble. When the voltage drops below a certain level or the frequency goes out of the normal range, the ATS senses that there's a problem. This could be due to a variety of reasons, such as a storm, a transformer failure, or maintenance work on the grid.

Initiating the Generator

Once the ATS detects a power outage, it sends a signal to the standby diesel generator set to start up. The generator then goes through a startup sequence, which includes priming the fuel system, starting the engine, and bringing the generator up to the correct speed and voltage. This process usually takes a few seconds to a couple of minutes, depending on the size and type of the generator.

Transferring the Load

After the generator is up and running and has reached a stable operating condition, the ATS transfers the electrical load from the grid to the generator. This is done in a seamless manner to ensure that there's minimal disruption to the connected equipment. The ATS switches the load over to the generator's output, providing power to the critical systems and appliances.

Monitoring the Generator

While the generator is supplying power, the ATS continues to monitor the generator's performance. It checks the voltage, frequency, and other parameters to make sure that the generator is operating within the acceptable limits. If any issues are detected, the ATS can take appropriate action, such as shutting down the generator or sending an alarm to the operator.

Restoring the Grid Power

When the main power supply is restored, the ATS detects the return of normal voltage and frequency. It then waits for a short period to ensure that the grid power is stable. Once it's confident that the grid is back up and running, the ATS transfers the load back to the grid and shuts down the generator. This process is also done smoothly to avoid any sudden power surges or disruptions.

Types of ATS

There are different types of ATS available, each with its own features and capabilities. Some ATS are designed for small residential applications, while others are suitable for large commercial and industrial installations. The choice of ATS depends on the size of the load, the type of generator, and the specific requirements of the application.

Benefits of Using an ATS with a Standby Diesel Generator Set

Using an ATS with a standby diesel generator set offers several benefits. Firstly, it provides automatic and seamless power transfer during outages, ensuring that critical systems and equipment continue to operate without interruption. This is especially important for businesses, hospitals, data centers, and other facilities where a power outage can have serious consequences.

Secondly, an ATS helps to protect the generator and the connected equipment. By monitoring the generator's performance and automatically shutting it down in case of a problem, the ATS can prevent damage to the generator and extend its lifespan. It also helps to prevent electrical surges and other issues that could damage the connected equipment.

Finally, an ATS makes it easier to manage the standby power system. With automatic operation, there's no need for manual intervention during outages, which saves time and reduces the risk of human error. It also allows for remote monitoring and control, which is convenient for operators and maintenance personnel.

Our Standby Diesel Generator Sets

As a supplier of Standby Diesel Generator Sets, we offer a wide range of products to meet the needs of different customers. Our generators are available in various sizes and configurations, from small portable units to large industrial generators. We also offer different types of ATS to ensure seamless integration with our generator sets.

If you're in the market for a standby diesel generator set, we have several options to choose from. For construction sites, we recommend our Construction Diesel Generator. These generators are designed to withstand the harsh conditions of construction sites and provide reliable power for tools and equipment.

For continuous power applications, our Prime Power Diesel Generator is a great choice. These generators are built to run for long periods of time and can handle heavy loads.

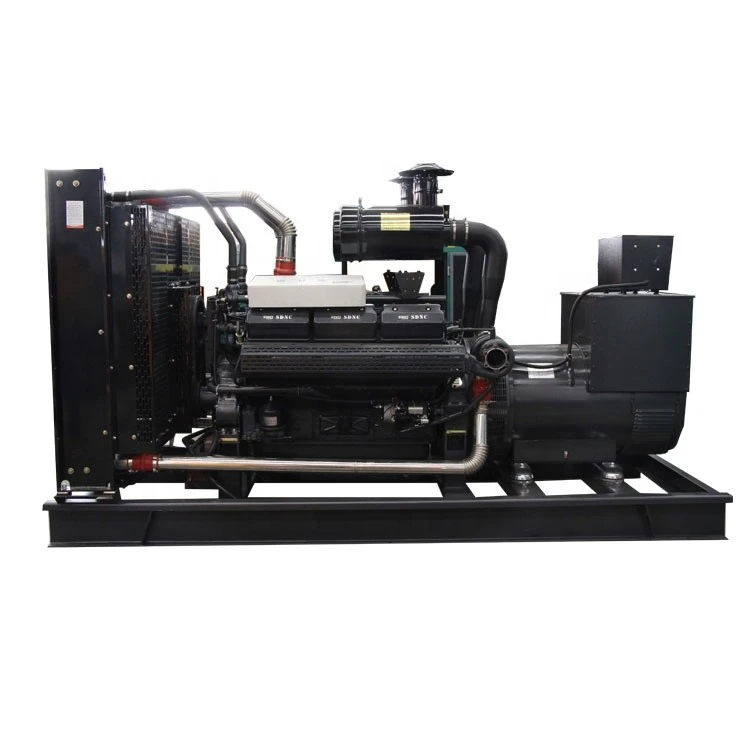

If you're looking for a more cost-effective option, our Open Type Diesel Generator is a good alternative. These generators are open-frame designs, which makes them easier to maintain and service.

Contact Us for More Information

If you're interested in learning more about our standby diesel generator sets or how an ATS works with them, please don't hesitate to contact us. We have a team of experts who can answer your questions and help you choose the right generator and ATS for your needs. Whether you're a homeowner, a business owner, or a contractor, we're here to provide you with the best solutions for your power requirements.
