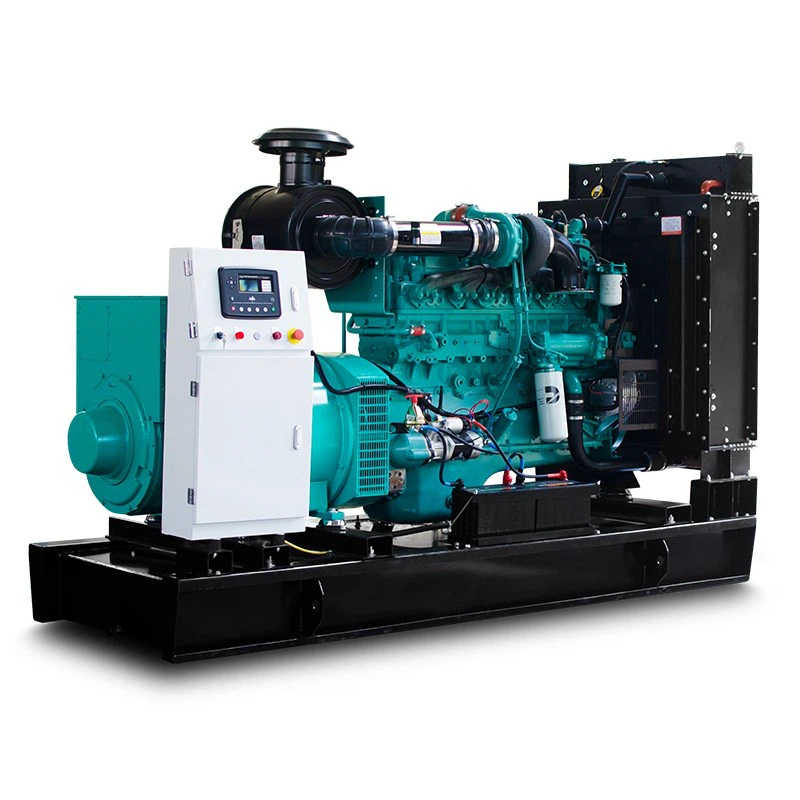

320KW Diesel Generator Sets
Reliable 320kW diesel generator with Cummins engine, offering stable output, fuel efficiency, and flexible configurations for industrial power solutions.
Product Introduction
Products Description

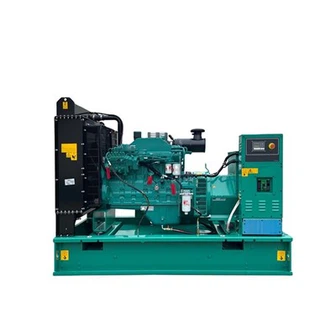

The 320kW diesel generator set is designed to deliver stable and continuous power output for industrial and project-based applications. Built with a high-performance Cummins diesel engine, the unit ensures reliable operation under heavy load conditions and supports long working hours in demanding environments.
This model is widely used for factory backup power, construction projects, and infrastructure applications, where consistent performance and fuel efficiency are essential.
Core Configuration
-
Engine: Cummins NTAA855-G7
- Alternator: KCC-375GF
- Controller: Automatic digital control system
- Optional: ATS, silent canopy, remote monitoring
Key Features
The NTAA855-G7 engine provides sufficient power margin to ensure the generator can deliver stable output during long-term operation, supporting continuous industrial use.
Cummins engine technology ensures optimized fuel consumption under load, helping reduce operating costs in long-hour applications.
Designed to handle load fluctuations, suitable for equipment with high starting current and dynamic power demand.
Standard configuration includes a reliable industrial alternator, with optional brands available to meet different project requirements.
Heavy-duty structure with water-cooled system ensures long service life and stable performance in harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Genset Model | KCC-375GF |
| Standby Power | 413 kVA / 330 kW |
| Prime Power | 375 kVA / 300 kW |
| Engine Model | NTAA855-G7 |
| Displacement | 14 L |
| Fuel Consumption | 209 g/kW·h |
| Voltage | 400/230 V |
| Frequency | 50 Hz |
| Phase | Three Phase |

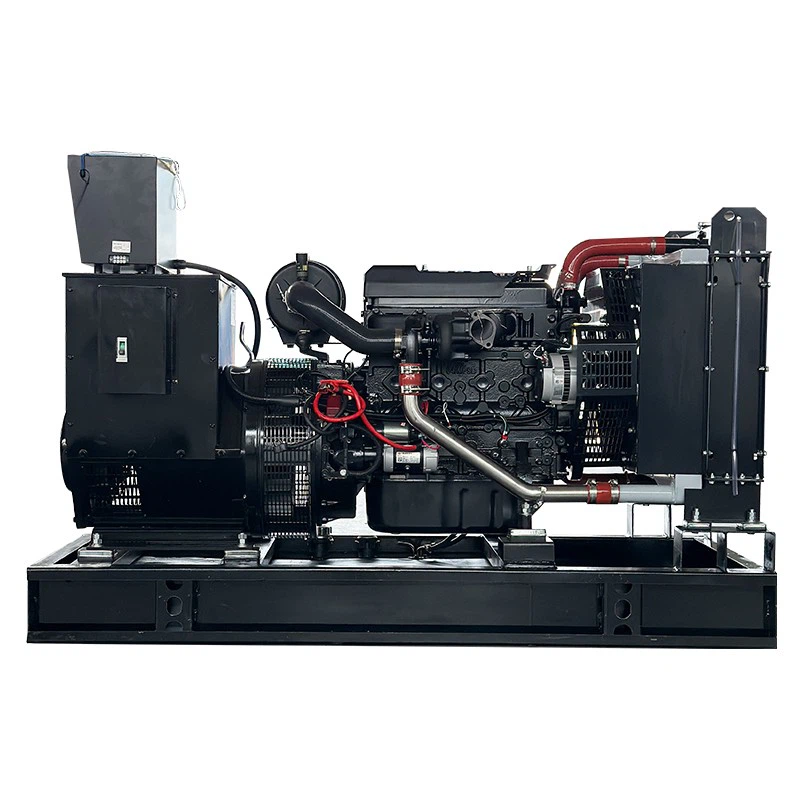

| Open Type Dimensions (L × W × H) | 3300 × 1250 × 1850 mm |

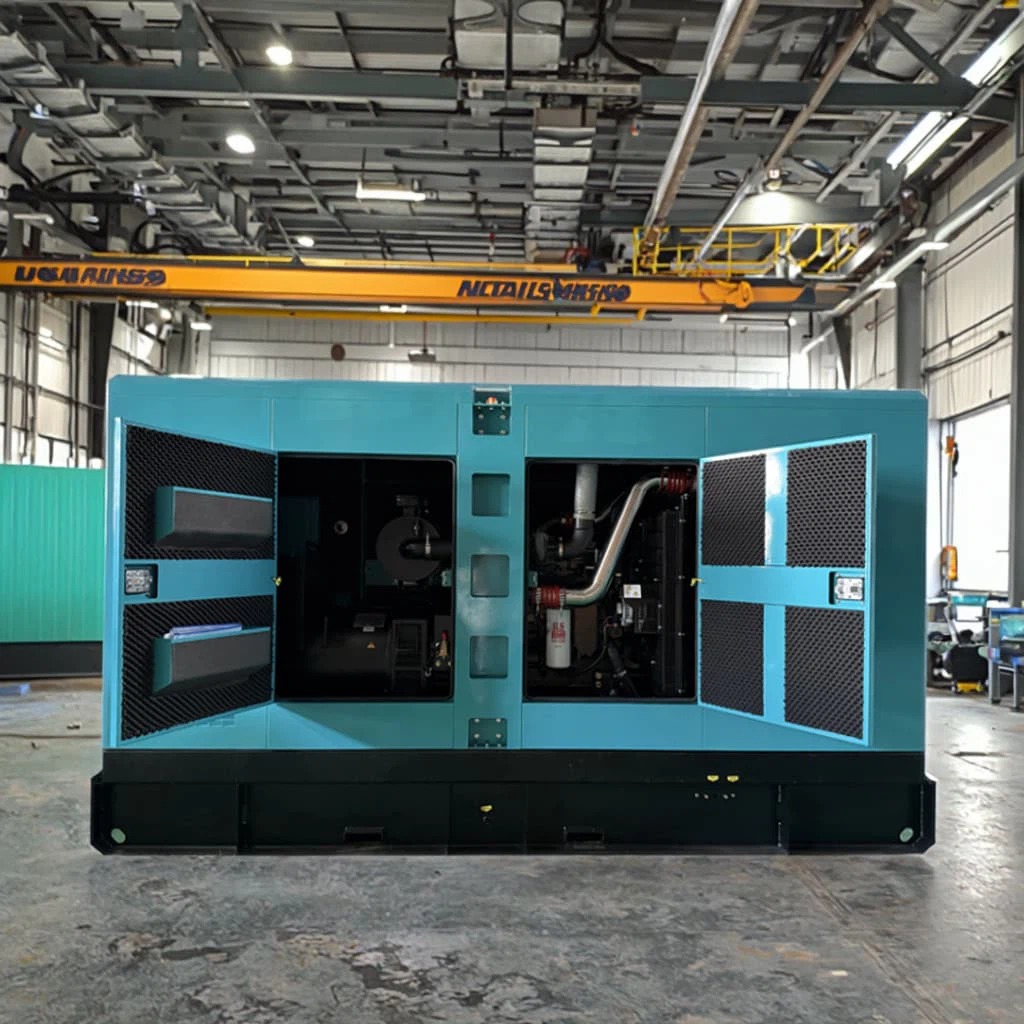

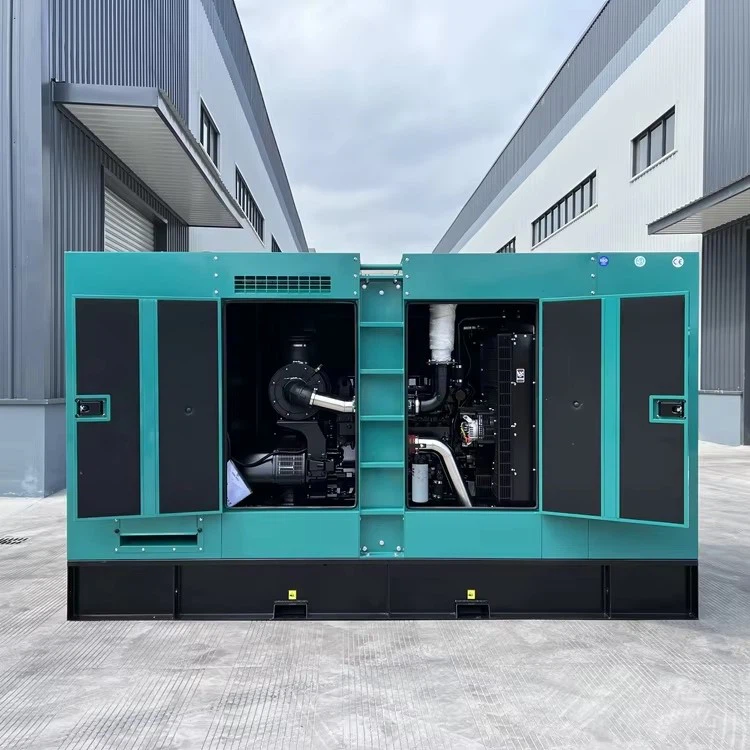

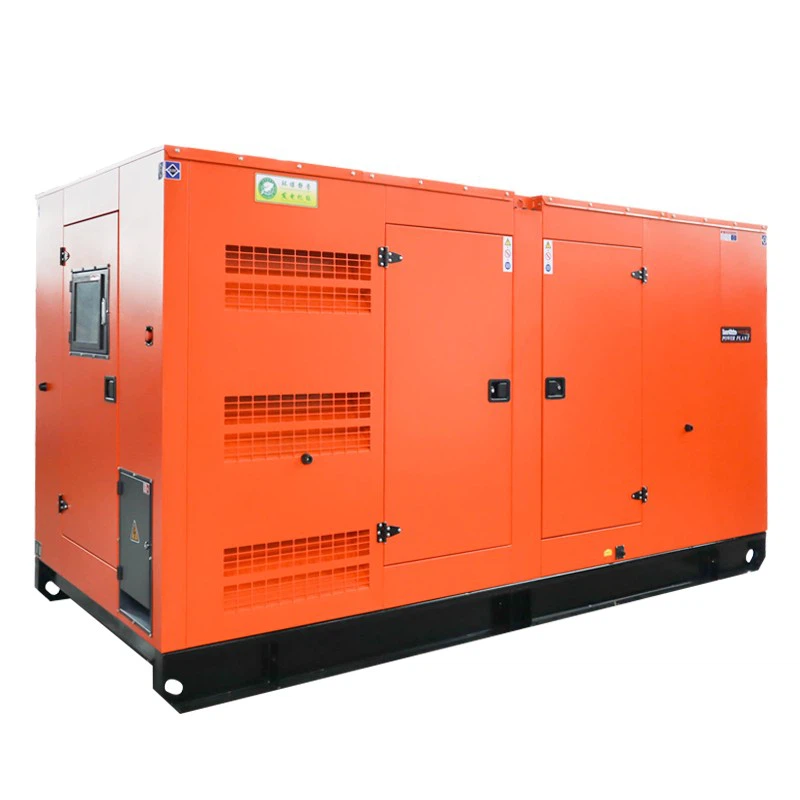

| Silent Type Dimensions (L × W × H) | 4000 × 1700 × 2000 mm |
Applications
- Industrial manufacturing plants
- Construction and engineering projects
- Mining and remote operations
- Commercial buildings and backup systems
- Infrastructure and public facilities
FAQ
Q: Is 320kW suitable for industrial use?
A: Yes, this model is designed for medium to large-scale industrial applications and continuous operation.
Q: Can the alternator brand be customized?
A: Yes, different alternator brands can be selected based on project requirements.
Q: Is it suitable for high starting load equipment?
A: Yes, it can handle load fluctuations and high starting current applications.
Q: Can this generator be used for prime power instead of standby?
A: Yes, the generator can be configured for both standby and prime power applications. For continuous operation, the load should be within the prime power rating to ensure stable performance and longer service life.
Q: What type of fuel consumption should I expect in real operation?
A: Fuel consumption depends on load conditions. At around 70–80% load, the generator operates at optimal efficiency. Actual consumption may vary based on environment and usage.
Q: Is this generator suitable for parallel operation?
A: Yes, it can be equipped with a parallel control system to operate with multiple generator sets, providing higher total power and improved system reliability.
